CAN Bus test of radar products
在雷達產品的測試上, 為了驗證產品上的CAN Bus Function是否正常. 因此在測試的環境中, 用最便宜跟能夠搭配產測程式的方案(Mega2560+MCP2515+RelayBoard).
並且利用ESP32+MCP2515 module和 PCAN-USB-FD去做驗證.
In the test of radar products, in order to verify whether the CAN Bus Function on the product is normal. Therefore, in the test environment, the cheapest solution that can be matched with the production test program (Mega2560+MCP2515+RelayBoard) is used.
And use ESP32+MCP2515 module and PCAN-USB-FD for verification.

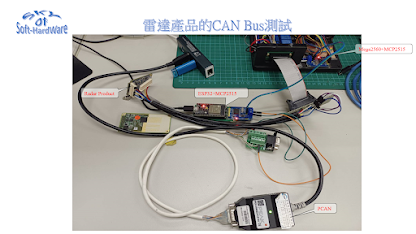

Architectures:
Fundamental:
PCAN-USB-FD
The PCAN-USB FD interface enables simple connection to CAN FD and CAN networks. Its compact plastic casing makes it suitable for mobile applications. A galvanic isolation of up to 500 Volts decouples the PC from the CAN bus.
Reference the previous article link on blog:
ESP32 + MCP2515 use CanHacker on CAN Bus system
